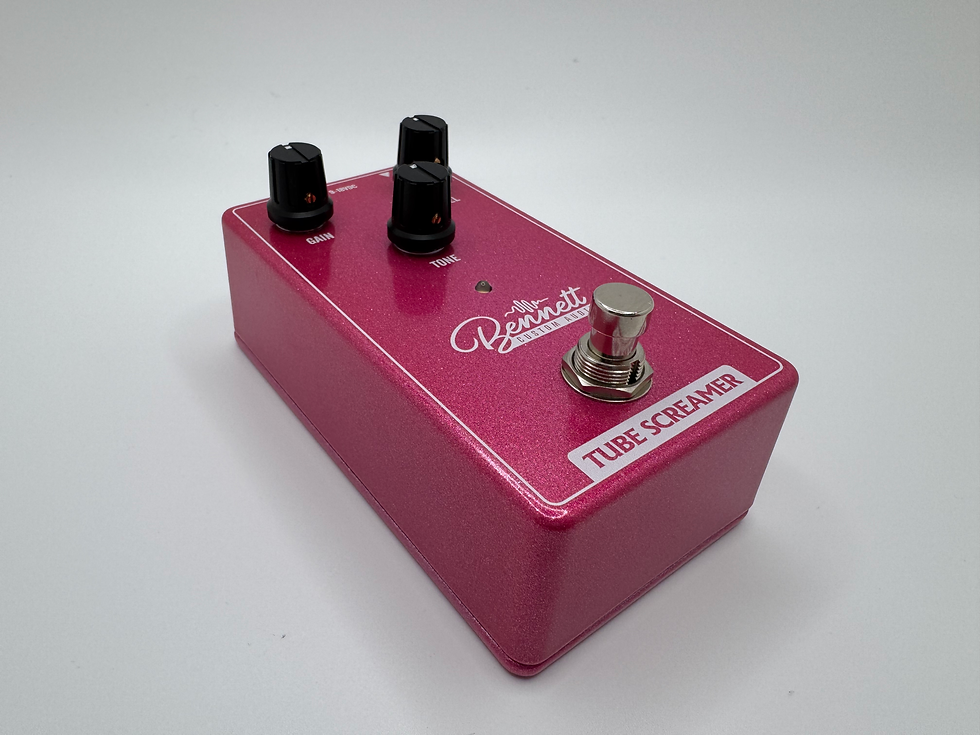

Tube Screamer

You know it, you love it!

This is a faithful recreation of the infamous "Keeley-modded" 808 overdrive of the same name. To spruce things up, we upgraded the transistor buffers to op amp buffers, added some additional output volume, and implemented mechanical true-bypass switching. In doing so, we enabled the pedal to be powered by up to 18VDC for some extra headroom and clarity. A welcome addition to any pedalboard!

• Gain
• Level
• Tone
• Bypass Footswitch
• Indicator LED

• Power Requirements:
  • 9-18 volts DC, centre-negative
  • No 9V battery clip inside
  • Max current draw: < 10mA
• Physical dimensions: 122 x 67 x 56mm (4.80" x 2.64" x 2.20")
• Signal Input Impedance: 1MΩ
• Signal Output Impedance: < 100Ω
• Top-mounted audio and power jacks
• Mechanical true bypass switching
• 100% Analog circuitry
• Hand-assembled in St. John's, Newfoundland & Labrador using high-quality components
